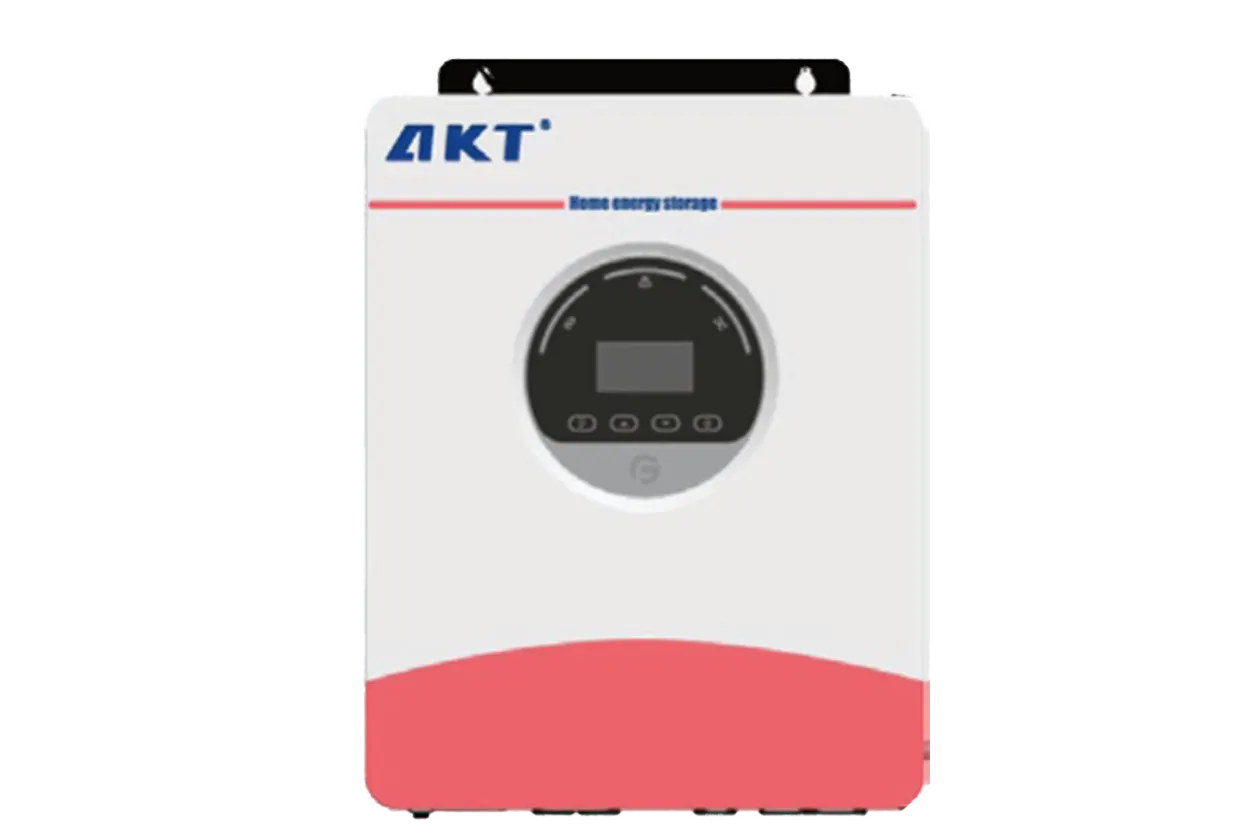

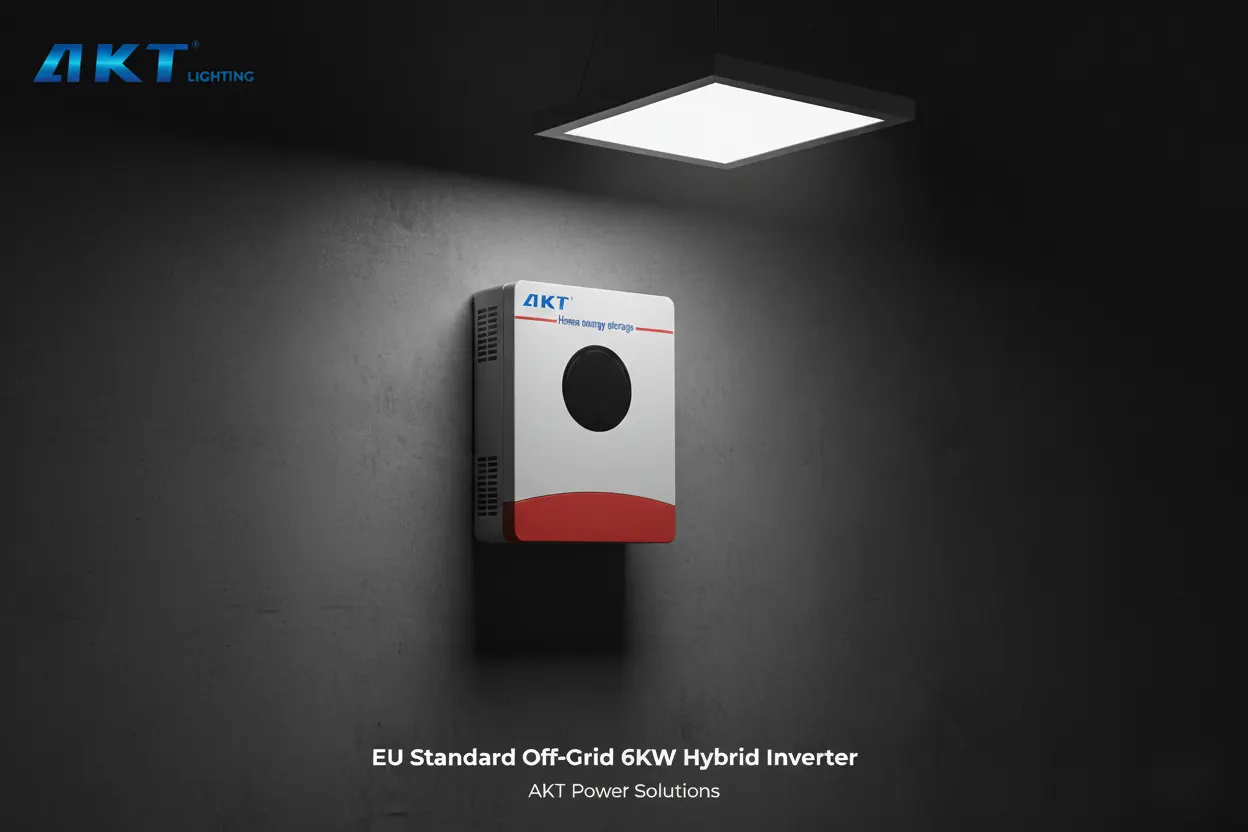

The G1645-6 Hybrid Solar Inverter 6KVA is a robust solar energy storage inverter designed to integrate photovoltaic power generation and energy storage systems. It efficiently converts DC power from solar panels into AC power for homes, businesses, or the grid. With an energy storage system, it can store electricity for nighttime use or periods of low sunlight. Features include pure sine wave output, fast conversion, and compatibility with Lead-acid or LiFePO4 (LFP) batteries, making it ideal for reliable and sustainable energy solutions.

Parameter Specification Explanation
Product Model G1645-6 Hybrid Inverter 6KVA
Rated Output Power 6000W Continuous output power
Peak Power 12000VA Maximum instantaneous power
Rated Output Voltage 220/230/240V Compatible with common AC voltage
Output Frequency 50/60Hz AC output frequency
Output Waveform Pure sine wave Stable and clean power output
Motor Load Capacity 4HP Maximum motor load supported
Conversion Time 10ms Rapid DC to AC conversion
Battery Type Lead-acid or LFP Compatible battery types
Rated Battery Voltage 48 Vdc Standard battery voltage
Battery Voltage Range 40-60 Vdc Safe operating voltage range
Max Charge/Discharge Power 6000W Maximum supported charging/discharging power
Max Charge/Discharge Current 120A / 130A Max current rating
Number of MPPT Paths 1 Solar input path
Max PV Input Power 6000W Maximum power from solar panels
Max Input Current 27A Maximum PV input current
Max Open Circuit Voltage 75V Maximum PV open-circuit voltage
MPPT Voltage Range 75-450V Voltage range for maximum power tracking
