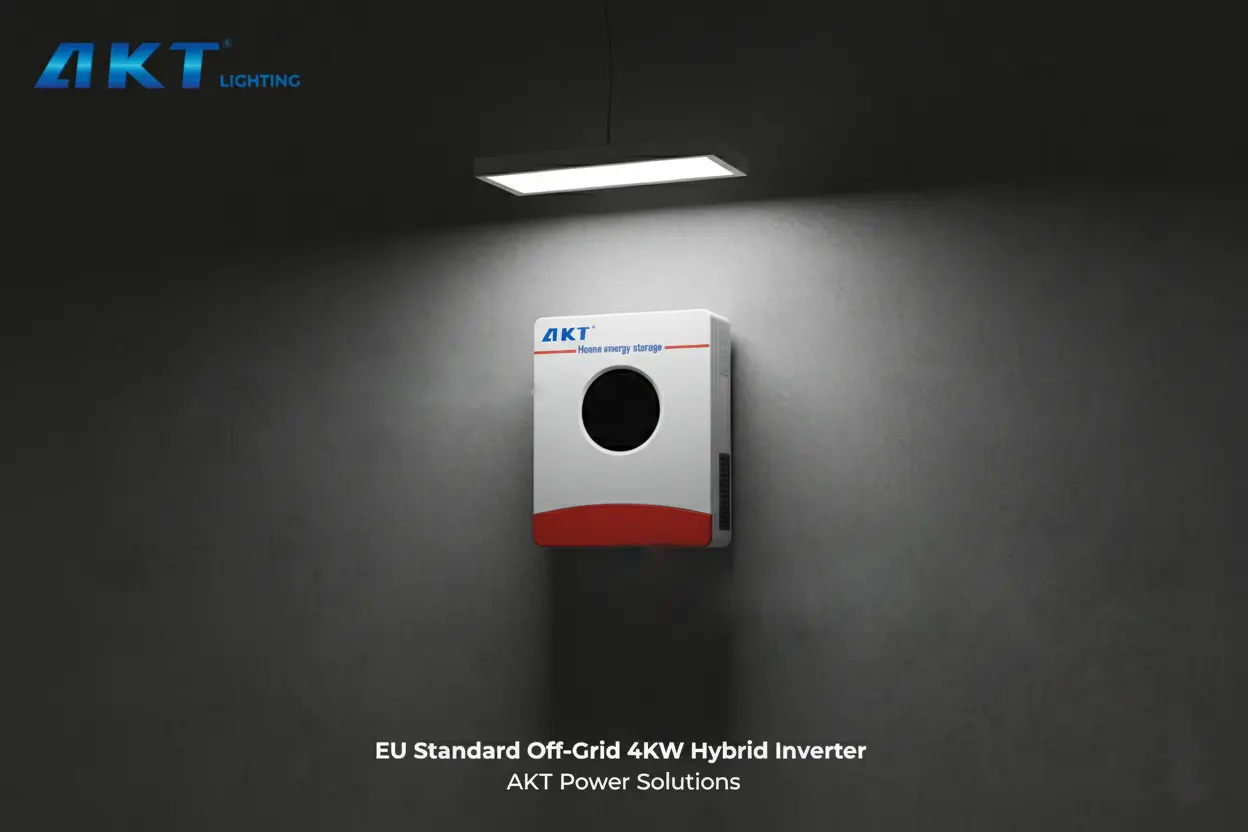

The G1700-4 Hybrid Solar Inverter 4KVA is a high-performance solar energy storage inverter that integrates photovoltaic power generation and energy storage systems. It converts DC power from solar panels into AC power for homes, businesses, or grid use. This inverter also stores electricity for nighttime or low-sunlight periods. Features include pure sine wave output, rapid conversion, and compatibility with LiFePO4 or Lead-acid batteries. Ideal for sustainable and reliable energy solutions.

Parameter Specification Explanation
Product Model G1700-4 Hybrid Inverter 4KVA
Rated Output Power 3000W Continuous output power
Peak Power 3600VA Maximum instantaneous power
Rated Output Voltage 220/230/240V Compatible with common AC voltage
Output Frequency 50/60Hz AC output frequency
Output Waveform Pure sine wave Stable and clean power output
Motor Load Capacity 4HP Maximum motor load supported
Conversion Time 10ms Rapid DC to AC conversion
Battery Type LiFePO4 / Lead-acid Compatible battery types
Rated Battery Voltage 24 Vdc Standard battery voltage
Battery Voltage Range 20-30 Vdc Safe operating voltage range
Max Charge/Discharge Power 3000W Maximum supported charging/discharging power
Max Charge/Discharge Current 120A / 180A Max current rating
Number of MPPT Paths 1 Solar input path
Max PV Input Power 1500W Maximum power from solar panels
Max Input Current 25A Maximum PV input current
Max Open Circuit Voltage 30V Maximum PV open-circuit voltage
MPPT Voltage Range 30-120V Voltage range for maximum power tracking
