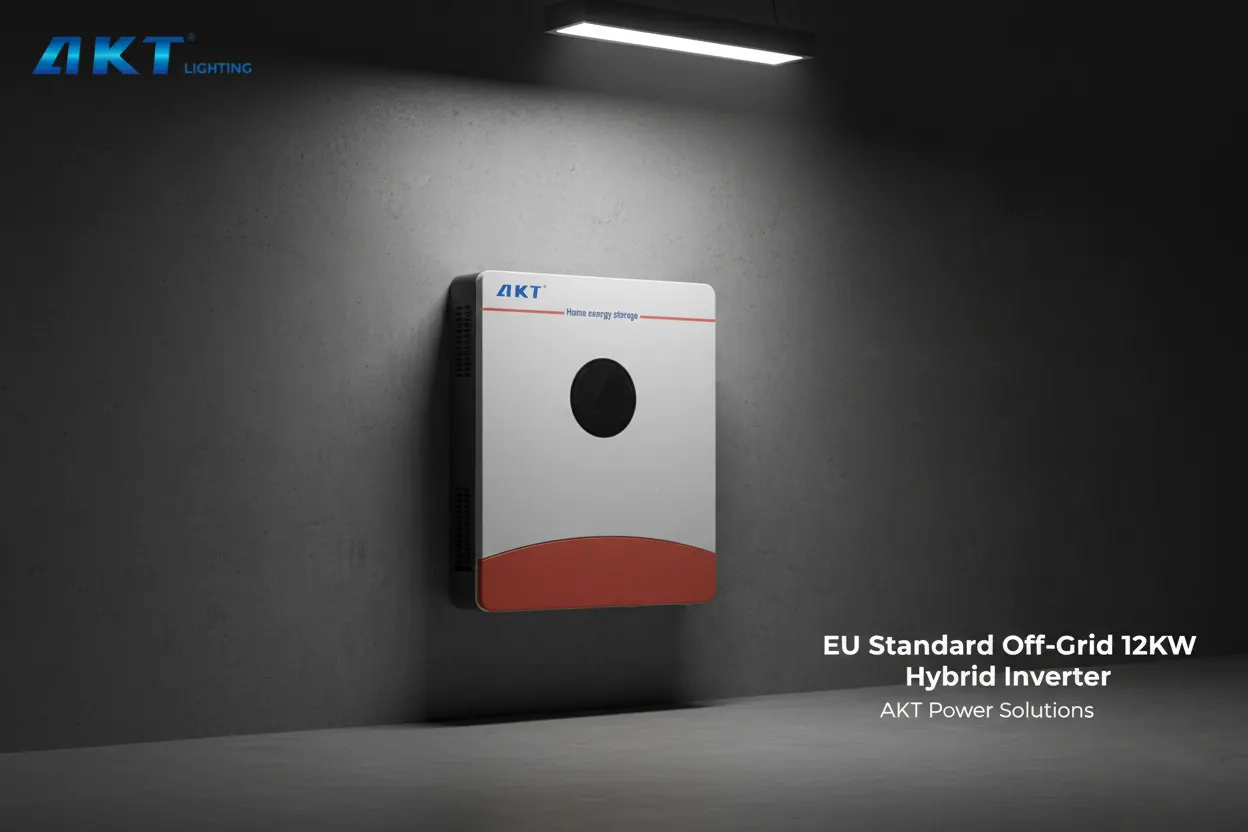

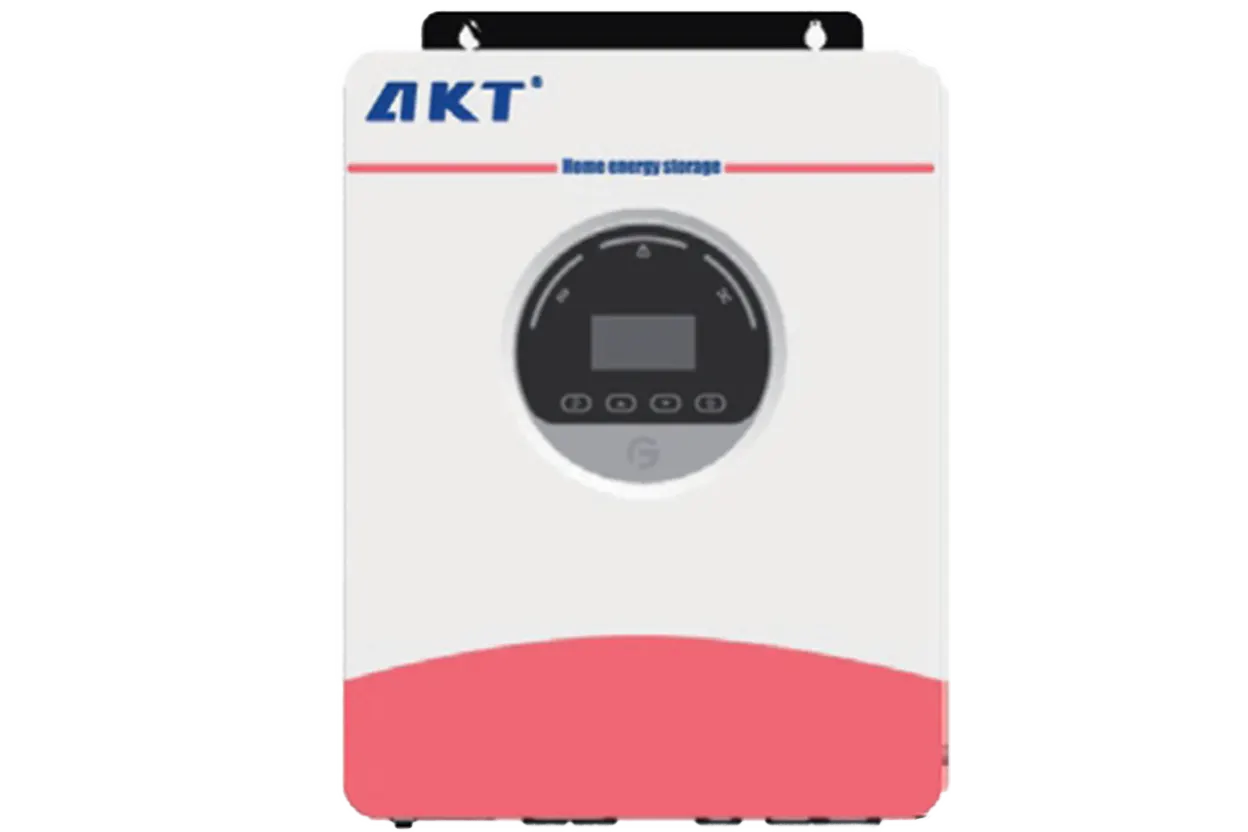

The G1645-12 Hybrid Solar Inverter 12KVA is a high-capacity solar energy storage inverter that integrates photovoltaic power generation and energy storage systems. It converts DC power from solar panels into AC power efficiently for homes, businesses, or the grid. Its energy storage system allows electricity to be stored for nighttime use or periods of low sunlight. Features include pure sine wave output, rapid conversion, and compatibility with Lead-acid or LiFePO4 (LFP) batteries, making it ideal for reliable and sustainable energy solutions.

Parameter Specification Explanation
Product Model G1645-12 Hybrid Inverter 12KVA
Rated Output Power 12000W Continuous output power
Peak Power 24000VA Maximum instantaneous power
Rated Output Voltage 220/230/240V Compatible with common AC voltage
Output Frequency 50/60Hz AC output frequency
Output Waveform Pure sine wave Stable and clean power output
Motor Load Capacity 4HP Maximum motor load supported
Conversion Time 10ms Rapid DC to AC conversion
Battery Type Lead-acid or LFP Compatible battery types
Rated Battery Voltage 48 Vdc Standard battery voltage
Battery Voltage Range 40-60 Vdc Safe operating voltage range
Max Charge/Discharge Power 12000W Maximum supported charging/discharging power
Max Charge/Discharge Current 210A / 240A Max current rating
Number of MPPT Paths 2 Solar input paths
Max PV Input Power 12000W Maximum power from solar panels
Max Input Current 27A Maximum PV input current
Max Open Circuit Voltage 75V Maximum PV open-circuit voltage
MPPT Voltage Range 75-450V Voltage range for maximum power tracking
