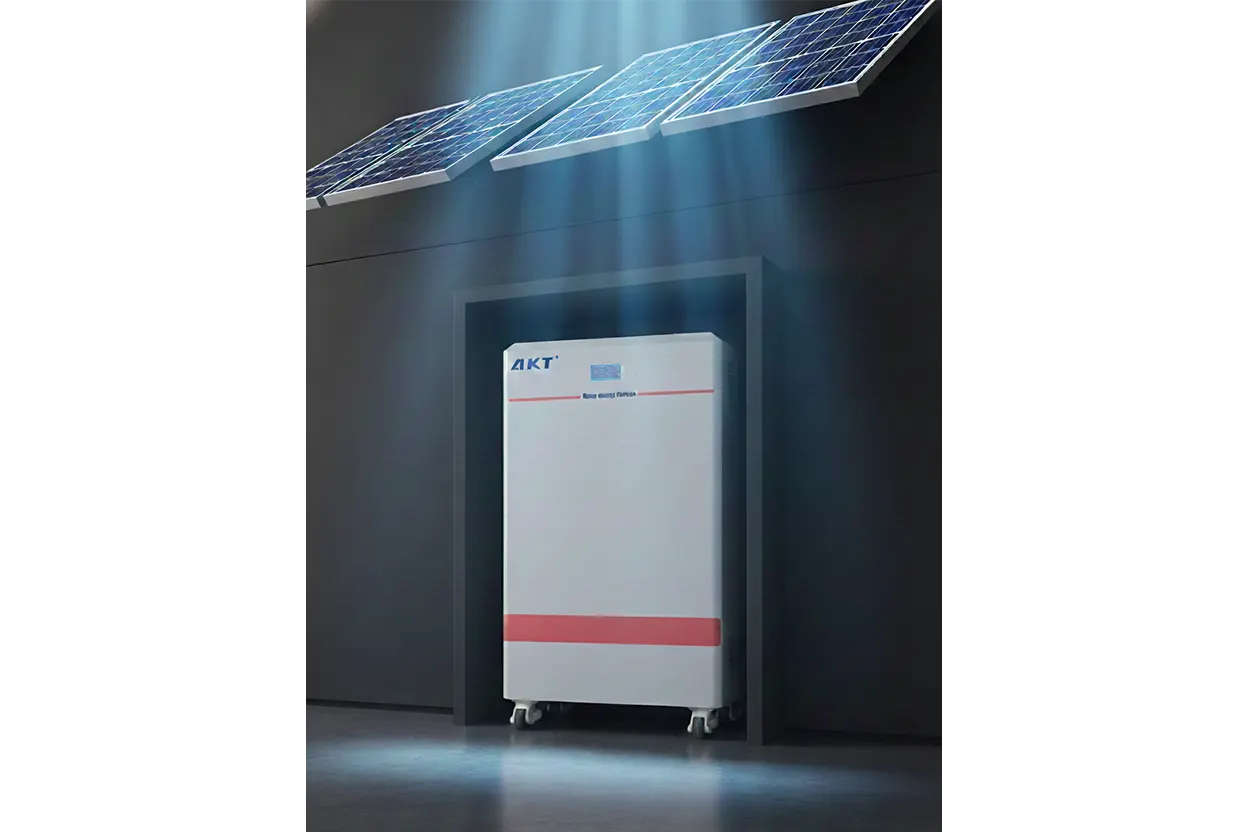

The AKT-D16-P01 Floor-Standing LiFePO4 Solar Battery 16kWh is a robust and modern energy storage solution for high-capacity residential or commercial applications. Designed for floor installation, it integrates multiple lithium cells in a durable housing with intelligent battery management and advanced safety features. The system prevents fire, explosion, or leakage and offers a user-friendly man-machine interface with alarm and online protection functions. Compatible with various inverters and communication protocols, it provides safe, efficient, and long-lasting energy storage.

Parameter Specification Explanation
Product Model AKT-D16-P01 Floor-standing LiFePO4 battery
Nominal Voltage 51.2 V Standard battery voltage
Nominal Capacity 200 Ah Battery capacity
Energy 16 kWh Total energy stored
Dimension Floor-standing, robust housing Physical size
Weight Varies (robust system) Battery weight
Discharge Cut-off Voltage 40 V Minimum voltage before shutdown
Charge Cut-off Voltage 58.4 V Maximum safe charging voltage
Communication Interface RS485, RS232, CAN Supported protocols
Combination of Battery Cells Multi-series, multi-parallel Cell configuration
Operating Temperature 0~55°C Safe operating range
Design Life 10+ Years Expected operational life
Cycle Life >6000 (80% DOD, 25°C/77°F) Number of safe charge cycles
Certification CE/UN38.3/MSDS Safety and quality certification
Max Charge/Discharge Current 200A Maximum current rating
Max Parallel Connections 15 Number of batteries supported in parallel
Special Features Intelligent BMS, alarm system, online protection, user-friendly interface Advanced safety and monitoring
